Firehjulstræk
Vandtæt elektronik
RTR (klar til at køre)

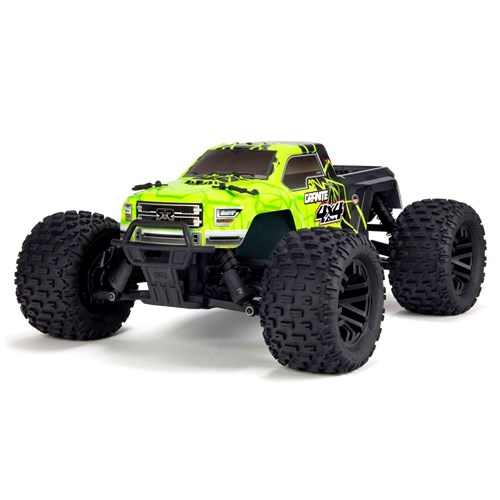

Arrma Granite Mega, her med børsteopsætning og firehjulstræk. Denne bil tåler meget og kan bruges året rundt, leveres med al elektronik klar monteret i bilen og rattradio med godt rækkevidde og garanteret fri for interferens. Bilen leveres med 8,4V NiMh-batteri og vægopladere til dette, så alt er klar til at køre både på og uden for den slagne vej. Bilen har store hjul for god tilgængelighed og en meget holdbar drivlinje, styreservo har metalhjul, og med kraftfulde 4-hjulstræk styrer den det meste af det.
Batteri IndstillingerBilen leveres med 2400mAh batteri på 8.4V 2400mAh. Batteriet er Hump-type, så husk dette, når du bestiller et ekstra batteri. Husk også at skifte til EC3/IC3, hvis du køber et Deans-batteri.
Hastighedsregulator i bilen tåler også brugen af 2S LiPo. Ved opgradering til 2s LiPo skal LiPo-afskæringen aktiveres på controlleren for ikke at dække og beskadige batteriet. Der skal også bruges en kompatibel oplader, den medfølgende er kun beregnet til NiMh. Størrelsen på batteriet kan være maks: 156x51x48mm.
ElektronikARRMA Granite Mega kommer her med den gode Spectrum STX2, og den er klar til rå kørsel lige ud af kassen. Bilen leveres med sprøjtsikker elektronik. Det vil sige, servo, regulator og modtager er designet til at modstå brug under fugtige forhold. Dette kræver god tørring og vedligeholdelse bagefter. Elektronikken er ikke beregnet til brug under vand.
Nødvendigt tilbehør4 AA-batterier til radioSpecifikationer| Skala | 1/10 |
| Længde | 429Mm W |
| Bredde | 342Mm |
| Højde | 196Mm |
| Frihøjde | 47Mm |
| Vægt | 2,9 Kg |
| Motor | 550-Størrelse 12T |
| Servostyring | Vandtæt med metaludstyr |
| Radiosystem | 2,4 GHz spektrum STX2 |
| Batteri Kontakt | IC3/EC3 |
| Oplader | 230V vægoplader 0,7A ladestyrke |
Product details in english
Built for monster truck bashing straight from the box, the rugged 1/10 scale ARRMA GRANITE 4X4 MEGA 550 comes fully equipped for all-terrain fun - and includes a Spektrum STX2 2.4GHz radio system for the ultimate in precise, dependable control.
Introduction
Fast and fully equipped, the 2S LiPo-compatible GRANITE 4X4 MEGA RTR arrives ready-to-bash in all terrain. Its MEGA 12T 550 brushed motor gives you the muscle to reach maximum speeds. Waterproof* electronics make it ready-to-run in any type of weather. dBoots Fortress tires supply the traction to take on any surface. The included Spektrum STX2 radio with SRX200 receiver offers many of the same features found in high-end 2.4GHz radio systems - throttle and servo reversing, throttle and steering travel adjust, throttle limiting and more - for the ultimate control. Precision aluminum, super-tough steel and composite materials are all combined in an easy-to-maintain vehicle design that is built for action, straight from the box. Your GRANITE 4X4 MEGA Monster Truck will launch you straight into dirt-blasting, rock-crushing fun. Just add four AA batteries and get bashing!
*Note: For details on waterproof standards, refer to the instruction manual.
Features
Spektrum STX2® 2.4GHz radio2-Channel SRX200 waterproof* receiverBuilt-in 3-position throttle limiterExtended range and interference-free performanceThrottle/steering reversingThrottle/steering travel adjustThrottle limitingADS-5 waterproof* 5kg-cm servo (70 oz-inch @ 6V)MEGA 12T Brushed 550 motorMEGA waterproof* ESCIC3 connectors (EC3 compatible)Easy-access power moduleEasy-access electronics moduleEasy-access diff module removal front and rearOil-filled shocksSuper-smooth bearingsSuper-tough metal gearsTough multi-spoke black wheels and multi-terrain dBoots Fortress tiresAdjustable body mountsAdjustable ride heightExtended height dirt defenders2400mAh 8.4V 7-cell NiMH batteryADC-N7 7-cell NiMH wall charger30 mph (48km/h) speed achievable in optimum driving conditions with optional gearingWaterproof*2-year limited warranty
*Note: For details on waterproof standards, refer to the instruction manual.
Overview
Powered by the MEGA 550 brushed motor system, the ARRMA® GRANITE 4X4 MEGA RTR Monster Truck is DESIGNED FAST, DESIGNED TOUGH - built for exciting bashing speeds and extreme, all-terrain durability! Its full-time 4WD transmission with front and rear differentials uses strong front, rear, and centerline telescopic driveshafts that cant be lost during heavy impacts, unlike dogbones. A simple, dependable, responsive steering assembly complements the ultra-reliable drive system and features a servo horn with built-in servo saver.
The self-bleeding, oil-filled shocks use a tried and tested, coil-over design for simple maintenance and amazing handling. Their innovative rod end has a molded-in spring perch for extra toughness. High chassis guards limit the amount of dirt and debris that can get into the chassis tub. Shock-absorbing loops keep the front and rear bumpers secured to the chassis, offering defense against heavy impacts.
The GRANITE 4X4 MEGA RTR Monster Trucks ingenious modular design makes chassis components easy to access for maintenance. Its power module consists of a MEGA 550 motor, motor plate, slipper clutch assembly and gear cover. The power module can be detached from the chassis, as a complete unit, by removing just one screw. With the power module removed, the slipper clutch can be reached easily for adjustments by taking out three screws that attach the gear cover. The power module design also ensures that pinion and spur gear mesh is perfect every time, using numbered holes for different pinion gear sizes.

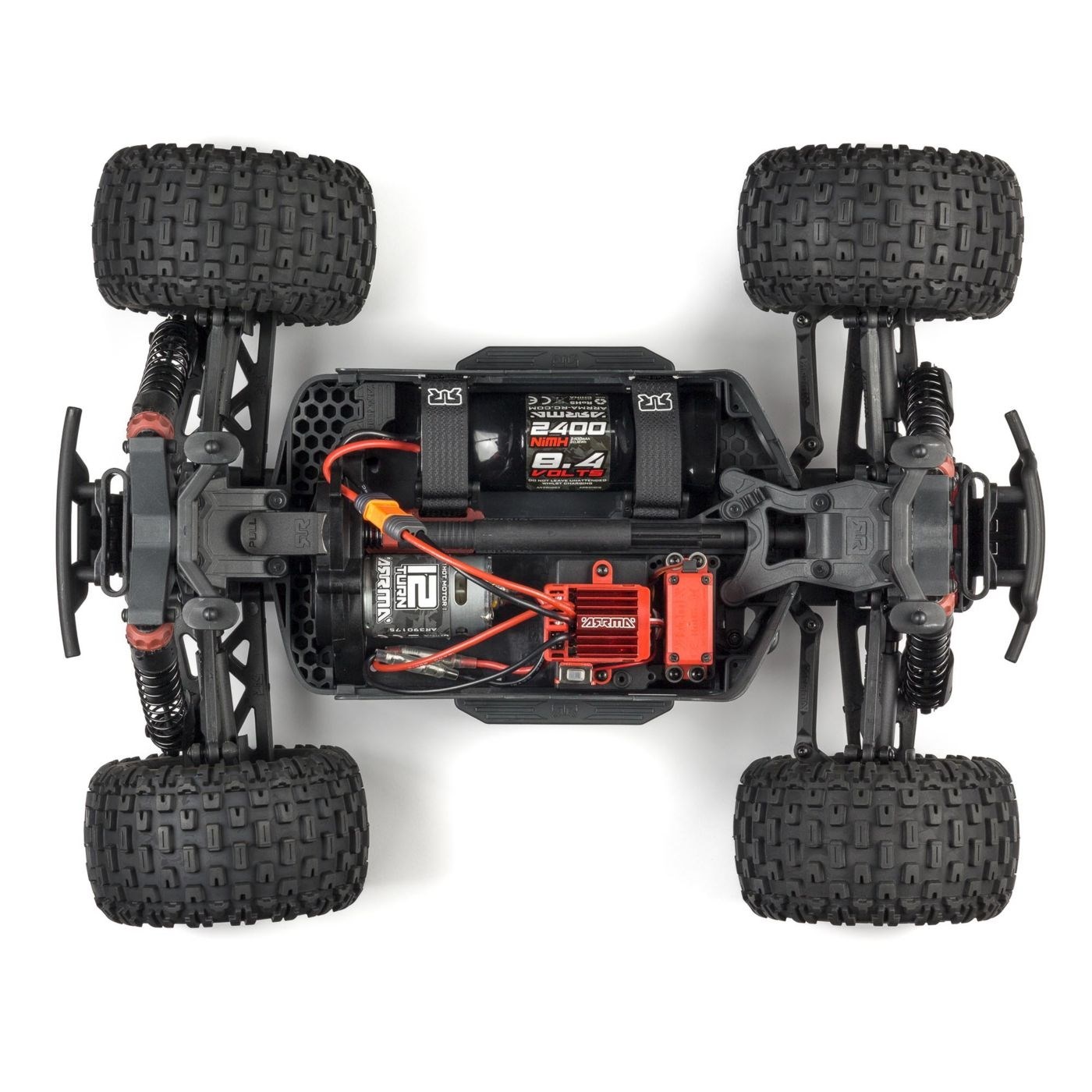

A two-piece molding screwed to the trucks chassis serves as its electronics module, containing a waterproof radio box, servo mount, and ESC tray. The radio receiver mounts inside the radio box for protection from dirt and moisture. The ultra-compact ESC is screwed to the top of the module, allowing quick access to the on/off switch, while the servo mounts to the side. All three components can be removed together, quickly and easily.
The differential module houses each assembled differential unit in an innovative yoke design. Only eight screws need to be removed to release the front and rear yokes. The power module can then be detached, allowing you to pivot the gearbox cases for access to the differentials. Each differential gear case features large pitch gears that are engineered to withstand huge torque. Internal metal gears have been chosen for reliability during extreme bashing.
Finally, tough, multi-spoke black wheels with dBoots® Fortress tires give the GRANITE 4X4 MEGA RTR effective traction for bashing on almost any terrain. Multiple battery types can be used with the hook-and-loop mounting, from 6-cell NiMH packs to a 2S block pack.
Mere info på engelsk
