Produkt information

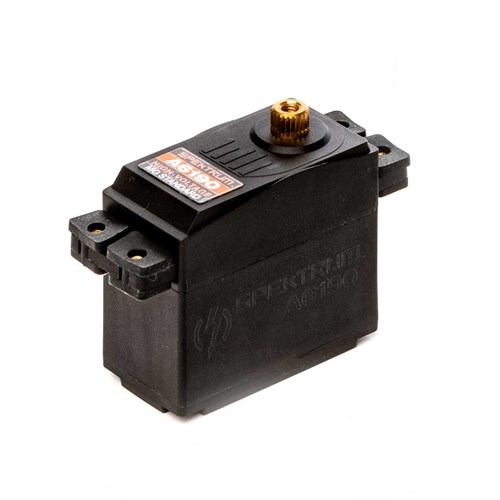

Spektrum her med en digital servo i standardstørrelse, der kan trække 8,3 kg ved 8,4V. Servoen har 23T spline og vejer 54g
PS! Produktteksten er maskineoversat fra norsk.
Specifikationer| Hastighed 6V | 0,22 Sek (60 dage) |
| Hastighed 7,4V | 0,17 Sek (60 grader) |
| Hastighed 8,4V | 0,13 Sek (60 grader) |
| Moment 6V | 6,48 Kg |
| Moment 7,4V | 7,0 Kg |
| Moment 8,4V | 8,3 Kg |
| Digital | Ja |
| Spline | 23T |
| Gear | Metal |

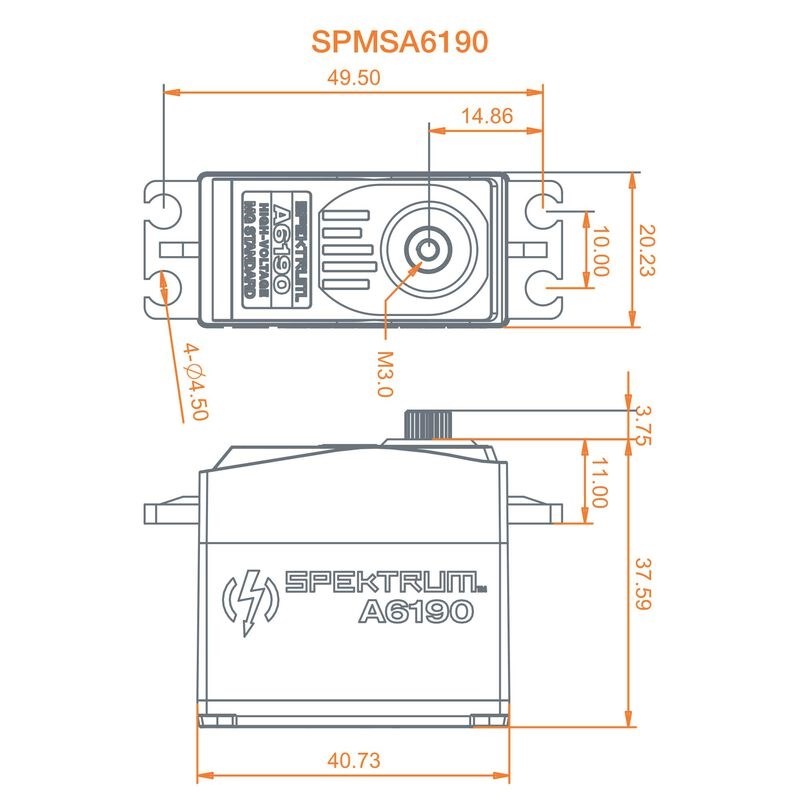

| Dimensioner | 40,73 X 20,23 x 36,59 mm |
| Spænding | 4,8-8,4V |
Product details in english
A6190 Standard Metal Gear HV Digital Servo
The Spektrum A6190 Metal Gear High Voltage Digital servo offers impressive performance for pilots looking for an excellent value standard size servo for their Sport and Trainer aircraft. High voltage capable, the A6190 can produce 8.3kg-cm (115 in-oz) of torque at 0.17 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a 5-pole ferrite motor and is supported by dual ball bearings for smooth operation. It also features low deadband and precise position control. Like all Spektrum servos, the A6190 delivers reliability, consistency and performance that are second to none.
