Crossfire-modtager med Unify Pro32-videomodtager i et produkt! 20x20mm monteringsfaktor med inkluderet 30x30mm adapter.
Product details in english
What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

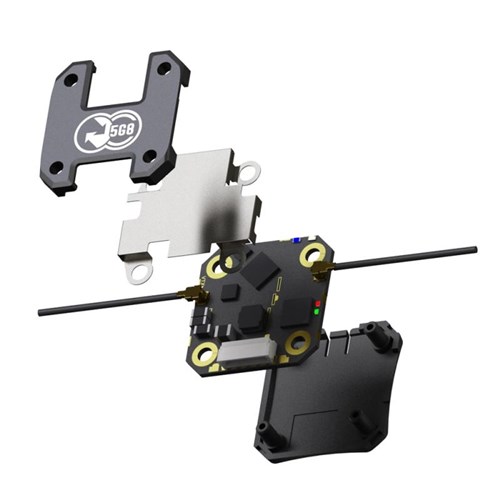

Introducing the TBS Crossfire Sixty9, a VTx and RC receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20x20, but we do incldue adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame, without any stacking necessity.
Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).
FEATURES:
Integrated video transmitter control with long range and (team-)race functions
Dedicated low-noise power supply for receiver and video transmitter
Sleek 20x20 mounting form factor
Plug&play connection and solder pads connectivity
3 different mounting flavors, RF tin shields, and other accessories included
High power analog adjustable video transmitter (up to 1W with perfect cooling)
5V regulator bulti-in, takes up to 6S
SPECIFICATIONS
Weight: 4.1g (board only)
Antenna ports: 1x video transmitter, 1x R/C receiver
Size: 24mm x 24mm
Requires: Firmware V4.62 and above
CRSF V3 ready
Input voltage: 8-25V (2-6S)
INCLUDES
1x TBS Crossfire Sixty9
1x TBS Crossfire Immortal-T antenna
1x u.FL to SMA mount (for VTx)
1x 30x30 heatsink / case
1x 20x20 heatsink / case
1x optional tin-shield (for added low-noise tolerance)
1x JST-SH x 9 connector
