Produkt information

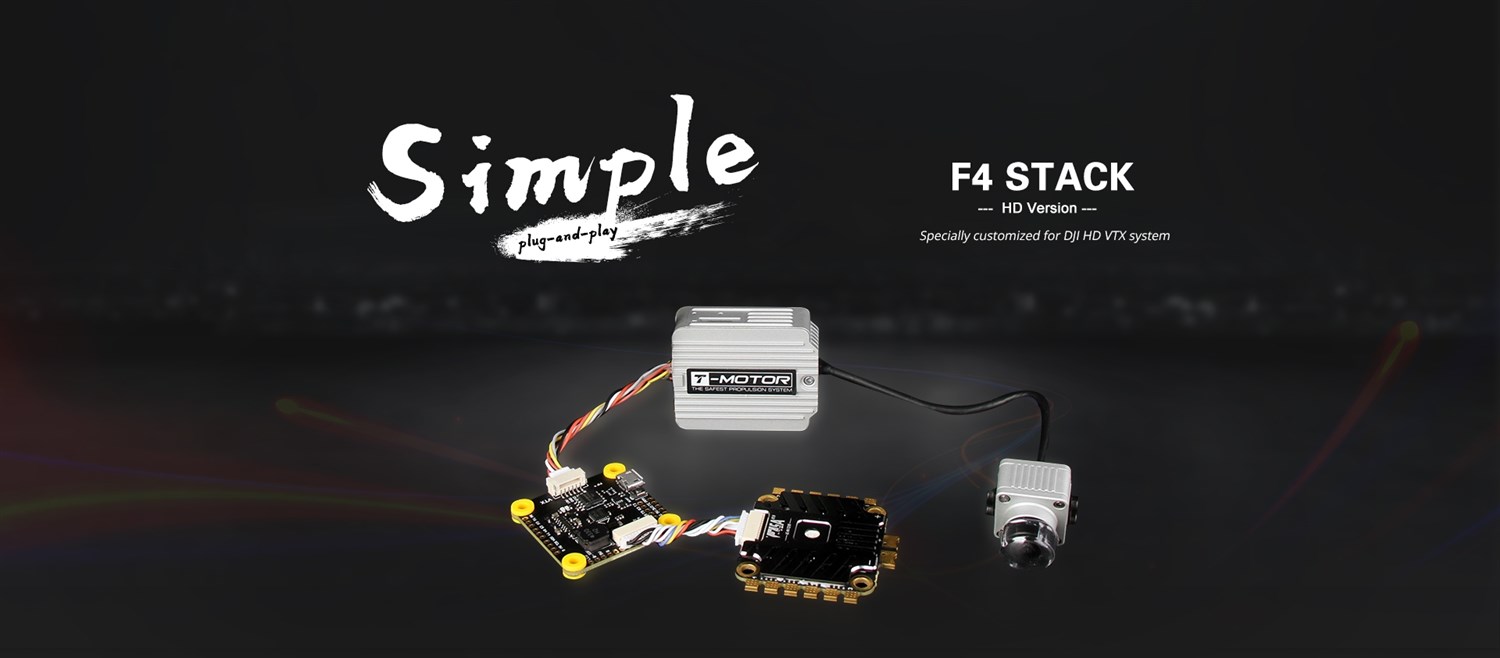

Her leverer T-Motor en flyvningskontrol og en hastighedskontrolstabel designet til DJI HD-systemet. Denne stakke anbefales også af DJI til brug med DJI FPV-systemet. Det leveres med kabel, der forbinder de to komponenter, og det leveres også med kabel, der skal tilsluttes til DJI Air-enheden for at undgå lodning der. Motorer skal stadig loddes på hastighedskontrollen. Denne stabel er kompatibel med 3-6S LiPo.
PS! Produktteksten er maskineoversat fra norsk.
Product details in english
Overview
Utilizes the STM32F051 main control system, strengthening the refresh rate up to 48Mhz.
Equipped with a 3-in-1 independent half-bridge driver chip.
Utilizes the Japanese TOSHIBA MOSFET, making it able to withstand 40 V and an internal resistance of 0.85m OH.
Designed to guarantee the reliability of ESC and meet the needs of the FPV market.
High TG PCB board provides stable performance in extreme conditions.
Onboard 10V BEC delivers cleaner power supply to the FC and can also be used to connect other devices.
Highlights
Powerful performance, high reliability, faster response, high-powered.
In The Box

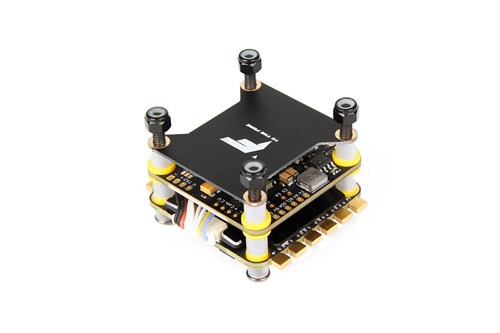

T-Motor F55A PRO II + F4 HD STACK × 1
M3×30 Screw × 4
M3 Non-Slip Nut × 4
M3×3 White Hollow Isolation Column × 4
M3×3 White Hollow Isolation Column × 12
Insulation Sheet × 1
Electrolytic Capacitor × 1
Power Cord × 1
Link Board × 4
Graph Connection Line × 2
ESC Cable × 2
Round and Strips F Stickers, T-Motor Sticker × 1
Specifications
F55A PRO II ESC -32BIT
BEC: 10V@2A
Voltage: 4S-6S
Weight: 17.5 g
Size: 45 × 41 × 7.3 mm
Installation hole distance: 30.5 × 30.5 mm
F4 Flight Control
Gyro: MPU6000
Master chip: STM 32 F 405 RGT 6
Mounting hole: 30.5 × 30.5 mm
Weight: 7 g
Size: 37 × 37 × 7 mm
Firmware: TMOTOR F4(Betaflight)
Compatibility
DJI Digital FPV System
